How to Build a Solar Battery Charger: Simple Steps for Charging Devices Anywhere

Have you ever found yourself in a situation where your phone or other devices are running low on battery and there’s no outlet in sight? It’s frustrating, right? Building a solar battery charger can be a game changer, giving you the freedom to charge your devices anywhere the sun shines.

Key Takeaways

• Essential Components: To build a solar battery charger, gather solar panels (10-20W), a charge controller (PWM or MPPT), and a suitable battery (lead-acid or lithium-ion).
• Circuit Design: Design a circuit that effectively manages power flow and includes necessary safety features like fuses to prevent overcurrent.
• Assembly Procedure: Assemble components carefully, ensuring secure connections and correct polarity to avoid damage.
• Testing and Troubleshooting: Regularly test output voltage with a multimeter and troubleshoot common issues such as loose connections or insufficient sunlight.
• Maintenance Practices: Maintain efficiency by cleaning solar panels every 3–6 months and regularly checking for secure, corrosion-free connections.

Materials Needed

To build a solar battery charger, you’ll require specific components to ensure proper functioning. Below are the essential materials you’ll need to gather.

Solar Panels

• Select Solar Panels: Choose solar panels with a power output between 10 to 20 watts for efficient charging.
• Consider Efficiency: Opt for monocrystalline panels for higher efficiency and better performance in low-light conditions.
• Example Panels: Renogy 100W Monocrystalline or SunPower 110W are popular choices.

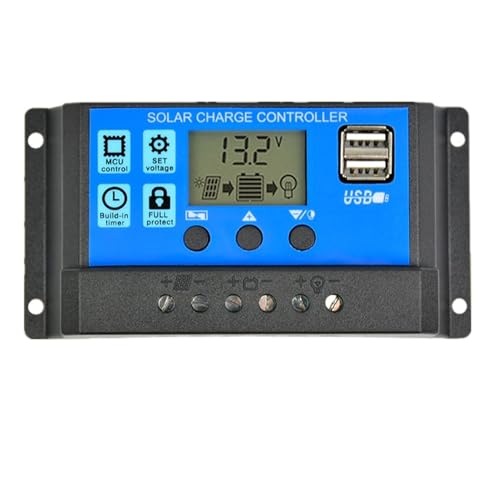

Charge Controller

• Use a Charge Controller: Include a charge controller to regulate voltage and prevent battery overcharging.
• Types Available: PWM (Pulse Width Modulation) controllers are cost-effective, while MPPT (Maximum Power Point Tracking) controllers optimize solar energy conversion.
• Recommended Models: Victron SmartSolar MPPT or Renogy Wanderer 10A PWM are reliable options.

Battery Types

• Choose Battery Type: Options include lead-acid (AGM or Gel) or lithium-ion batteries.
• Consider Capacity: Aim for a battery capacity ranging from 12Ah to 100Ah, depending on your power needs.
• Example Batteries: Renogy Deep Cycle AGM or Battle Born Lithium-ion batteries offer good performance.

• Gather Wiring Materials: Use 12-gauge wire for connections to handle solar panel output safely.
• Select Connectors: Employ MC4 connectors for solar panel connections and ring terminals for battery connections.
• Ensure Length is Suitable: Measure the distance between components to determine wire length and minimize voltage drop.

By gathering these materials, you’re equipped to build a functional solar battery charger that meets your charging needs.

Step-by-Step Guide

Here’s how to build your solar battery charger effectively. Follow these steps for a successful project.

Designing the Charger Circuit

Design your circuit to efficiently manage power flow. Use a schematic that incorporates the solar panel, charge controller, and battery. Ensure the charge controller matches the battery type. PWM (Pulse Width Modulation) controllers are cost-effective, while MPPT (Maximum Power Point Tracking) ones offer superior efficiency. Include fuses to protect against overcurrent.

Assembling the Components

Assemble the components by carefully following your design. Start with the solar panel and attach it to the charge controller using suitable gauge wiring. Connect the output of the charge controller to your battery. Ensure connections are tight and secure. Always double-check polarities to avoid damage. Utilize a soldering iron for strong connections if necessary.

Connecting the Solar Panels

Connect your solar panels to maximize sunlight exposure. Position them in a location receiving direct sunlight for most of the day. If using multiple panels, connect them in series for higher voltage or parallel for higher current. Use appropriate connectors to join panels, ensuring weatherproofing for outdoor setups. Test connections with a multimeter to confirm voltage output before attaching to the charger circuit.

Testing Your Solar Battery Charger

Testing your solar battery charger ensures it operates correctly and efficiently. You can measure output voltage and troubleshoot common issues to maximize performance.

Measuring Output Voltage

Measuring output voltage is crucial for verifying your charger functions properly. Use a multimeter to check the voltage output from the solar panels and the battery load. Follow these steps:

1. Set Up the Multimeter: Adjust the multimeter to the DC voltage setting.
2. Connect the Probes: Place the red probe on the positive terminal and the black probe on the negative terminal of the solar panel.
3. Read the Voltage: Observe the reading on the multimeter display. A healthy solar panel should produce a voltage close to its rated output during peak sunlight.
4. Repeat with the Battery: Check the battery voltage using the same method. It should reflect a charge close to its specifications.

Ensuring the voltage falls within acceptable ranges confirms that the charger charges efficiently.

Troubleshooting Common Issues

Troubleshooting common issues aids in identifying problems quickly. Here are some typical issues and solutions:

1. No Voltage Output:

• Check connections for looseness or damage.
• Ensure the solar panel receives direct sunlight.

1. Low Voltage:

• Inspect for dirt or debris on the solar panel; clean if necessary.
• Verify that the charge controller is compatible with the battery type.

1. Charging Indicator Not Lit:

• Confirm that the battery is properly connected.
• Test the charge controller; it may require resetting.

1. Battery Not Holding Charge:

• Evaluate the battery’s health; older batteries may lose capacity.
• Ensure proper ventilation during charging to avoid overheating.

Regular testing and troubleshooting maintain your solar battery charger’s efficiency.

Maintenance Tips

Maintaining your solar battery charger is essential for ensuring optimal performance. Follow these tips to keep your system running smoothly.

Cleaning Solar Panels

Clean your solar panels regularly to maximize efficiency. Dust, dirt, and debris can block sunlight and reduce charging capacity. Use a soft cloth or sponge with mild soap and water to gently wipe the surface. Aim to clean panels every 3 to 6 months or more frequently in dusty areas. In addition, check for any obstructions, such as leaves or branches, that may block sunlight exposure.

Checking Connections

Inspect your connections periodically to ensure they remain secure and corrosion-free. Loose or corroded connections can lead to voltage drops and reduced charging efficiency. Tighten any loose connections, and use a corrosion inhibitor to protect metal contacts. Check wiring for any signs of wear, fraying, or damage. Replace damaged wires immediately to prevent short circuits or energy loss.

Conclusion

Building your own solar battery charger can be a rewarding project that empowers you to harness renewable energy for your devices. With the right materials and a bit of patience you can create a reliable source of power that works wherever the sun shines.

Remember to keep testing and maintaining your charger to ensure it stays in top shape. Regular cleaning and checking connections will go a long way in keeping everything running smoothly.

Now that you’ve got the tools and knowledge at your fingertips you can enjoy the convenience of charging on the go while contributing to a more sustainable future. Happy charging!

Frequently Asked Questions

What materials do I need to build a solar battery charger?

To build a solar battery charger, you will need solar panels (preferably monocrystalline with 10 to 20 watts output), a charge controller (PWM or MPPT), suitable batteries (lead-acid or lithium-ion with 12Ah to 100Ah capacities), and essential wiring materials and connectors for safe connections.

How do I design the circuit for my solar battery charger?

Designing the circuit involves ensuring the charge controller matches the type of battery you are using. This step helps manage power flow efficiently, ensuring that solar energy properly charges the battery without overloading it.

How can I test my solar battery charger?

To test your solar battery charger, use a multimeter to measure the output voltage from the solar panels and the battery. Confirm that both outputs are within the expected voltage range to ensure proper operation and charging efficiency.

What should I do if my solar battery charger is not working?

If your solar battery charger shows no voltage output or low voltage, check connections for security and corrosion. If issues persist, inspect the solar panels and charge controller for any faults, and troubleshoot these components as necessary.

How often should I maintain my solar battery charger?

Regular maintenance is essential for optimal performance. Clean the solar panels every 3 to 6 months, or more frequently in dusty areas, and periodically check all connections to ensure they are secure and free from corrosion for maximum efficiency.
