Have you ever wondered if you can charge a 24V battery using a 12V solar panel? It’s a common question for those looking to harness solar energy efficiently. You might find yourself in a situation where you have a 12V panel but need to power a 24V system, and figuring out how to make that work can be tricky.
In this article, you’ll discover practical solutions and tips to help you maximize your solar setup. Whether you’re an enthusiast or just starting out, understanding how to charge a 24V battery with a 12V panel can save you time and money. Get ready to explore the options that can keep your batteries charged and your projects running smoothly.
Key Takeaways
- Charging a 24V Battery with a 12V Solar Panel: It’s possible but requires careful planning, such as using a charge controller or a voltage booster for optimal performance.
- Series Connection for Voltage Increase: Connect two 12V batteries in series to achieve the necessary 24V required for charging, while parallel connections are unsuitable for this purpose.
- Importance of Charge Controllers: Using a charge controller (preferably an MPPT) is essential to regulate power flow, prevent overcharging, and extend battery lifespan.
- Utilizing Multiple Solar Panels: For greater efficiency, connect two 12V solar panels in series to create a combined output of approximately 24V.
- Safety Precautions: Monitor voltage levels and use proper wiring to prevent risks such as overcharging and short circuits, ensuring a safe charging process.
Understanding Solar Panel Basics
Solar panels convert sunlight into electricity. Understanding their basics is crucial for their effective use in charging batteries.
Types of Solar Panels
Several types of solar panels exist, and each serves distinct needs. Common types include:
- Monocrystalline Panels: Known for their high efficiency and longevity. They’re made from a single crystal structure, providing more power per square foot.
- Polycrystalline Panels: Slightly less efficient than monocrystalline panels, but more affordable. These are made from multiple crystal structures.
- Thin-Film Panels: Lightweight and flexible, these panels are easier to install. They typically require more space for the same energy output as crystalline panels.
Understanding these types helps in choosing the right solar panel based on your energy needs.
Voltage Output Explanation
Voltage output determines how well a solar panel can charge a battery.
- 12V Solar Panel: Commonly used in residential and small-scale systems. Output typically fluctuates between 18-22 volts when exposed to full sunlight.
- 24V Battery Requirements: Charging a 24V battery generally requires a higher voltage to ensure efficiency.
You can adapt a 12V panel to charge a 24V battery system. Using a charge controller or a voltage booster may improve compatibility. Always check the voltage requirements of your specific battery system to ensure optimal performance.
Compatibility of 12V Solar Panels with 24V Batteries
Charging a 24V battery with a 12V solar panel is possible, but it requires specific considerations. Understanding how to utilize your 12V solar panel effectively can streamline the charging process.
Recommended Products
SMART SOLAR CHARGE CONTROLLER: Solar charge the smart way with the Victron Energy SmartSolar MPPT charge controller, to ensure that every ray of available sunlight is converted into usable energy, while optimizing battery longevity.
【Product Advantages 】: 100A intelligent adjustment controller with precise time control and light control, can switch loads on and off at a fixed time, adjustable voltage parameters, and memory function. Large LED display screen, real-time display of working voltage, clearer data reading. Flame retardant materials are safe and durable, fashionable and simple. Large section wiring port, wire spacing increased by 99mm
HASSLE-FREE PLUG & PLAY: Skip the confusing setups. With smart 12V/24V auto-recognition, installation is a breeze. Simply connect your battery first (ensuring a base charge for auto-detection) followed by your solar panels, and let the controller do the rest.
Series vs. Parallel Connection
In connecting batteries, you can choose between series and parallel configurations.
- Series Connection: This method connects batteries end-to-end, increasing voltage. For example, two 12V batteries connected in series provide 24V, making this setup ideal for charging a 24V battery with a 12V solar panel. This method ensures you reach the desired voltage level.
- Parallel Connection: Parallel connections provide the same voltage but increase capacity. Connecting 12V batteries in parallel results in a 12V output, which isn’t suitable for a 24V system. Hence, this method isn’t recommended if you’re looking to charge a 24V battery.
Selecting the right configuration is key to ensuring effective charging with available solar power sources.
Charge Controller Requirements
Using a charge controller is critical when charging a 24V battery with a 12V solar panel.
- Charge Controller Functions: A charge controller regulates power flow from the solar panel to the battery. It prevents overcharging and protects the battery’s lifespan.
- Types of Charge Controllers:
- PWM (Pulse Width Modulation): This type is cost-effective and suitable for small systems. It’s efficient for charging 24V batteries with lower power outputs.
- MPPT (Maximum Power Point Tracking): This advanced controller extracts maximum power from the solar panel and adjusts voltage levels accordingly. An MPPT controller can convert 12V input to a suitable 24V output, optimizing the charging process.
To ensure proper function, it’s vital to select a charge controller compatible with your system’s voltage and solar panel capacity. Using a controller maximizes efficiency and enhances the longevity of your battery system.
Charging Process
Charging a 24V battery with a 12V solar panel involves specific steps to ensure efficiency and safety. Understanding these steps can maximize the use of your solar setup.
Steps to Charge a 24V Battery
- Connect Batteries in Series: If you’re using 12V batteries, connect two in series to create a 24V system. Ensure that the positive terminal of the first battery connects to the negative terminal of the second.
- Use a Charge Controller: Install a charge controller between the solar panel and the battery system. This device regulates current flow and prevents overcharging. Choose an MPPT charge controller for better efficiency.
- Connect the Solar Panel: Connect the 12V solar panel to the input terminals of the charge controller. Ensure that the panel’s positive terminal connects to the charge controller’s positive input, and the negative terminal connects to the negative input.
- Monitor Battery Voltage: Check the battery voltage periodically using a multimeter. This practice ensures the system fits within safe voltage levels and that the batteries are charging effectively.
- Maintain System: Regularly clean the solar panel to maintain efficiency. Remove dirt or debris that may block sunlight. Additionally, check for loose connections to avoid performance issues.
- Sunlight Exposure: Direct sunlight exposure greatly impacts charging efficiency. Aim for a location with minimal shading during peak hours.
- Panel Orientation: The angle and direction of the solar panel affect how much sunlight it captures. Ensure the panel is positioned optimally for maximum solar gain.
- Temperature: High temperatures can decrease solar panel efficiency. Ensure your setup allows for some airflow around the solar equipment.
- Battery Condition: The age and health of the 24V battery influence charging effectiveness. Regularly inspect your battery for signs of wear or damage.
- Wire Gauge: Thicker wires can reduce resistance in the circuit, improving efficiency. Use the appropriate wire gauge for distance and current level to minimize energy loss.
Following these steps and considering these factors can enhance your experience charging a 24V battery with a 12V solar panel.
Alternative Solutions
Consider various methods to effectively charge a 24V battery using a 12V solar panel. Several alternative solutions can help you achieve this goal without complicated setups.
Recommended Products
INCREDIBLY SMALL, HIGHLY POWERFUL: The Orion XS 1400 uses your engine’s alternator to charge the house battery via the starter battery with 98.5% efficiency. It’s the most compact DC to DC charger available, delivering full rated output even in 40ºC/104ºF environments.
8V to 30V operating input range, output voltage DC 5V, output current 2.4A × 5 ports (12A max).

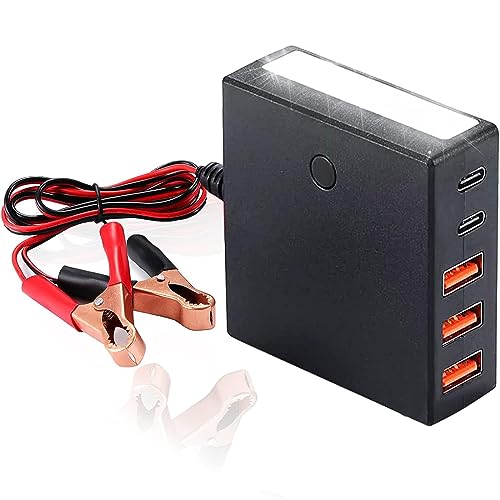

【Parameter Introduction】 Input voltage range: 10-32V; output voltage: DC5V, total output current: 6A max; total output power: 30W max (USB cable length: 12.2 inches 31cm)
Using a DC-DC Converter
A DC-DC converter serves as an excellent tool for this purpose. It steps up the voltage from your 12V solar panel, transforming it into a suitable level for charging a 24V battery. When selecting a DC-DC converter, ensure it can handle the input from your solar panel, ideally 18-22 volts. Look for models with a high-efficiency rating, as this maximizes energy transfer and minimizes losses. Installation typically requires connecting the solar panel output to the converter input and then linking the converter output to the battery. Monitoring the battery voltage during this process ensures you don’t exceed the acceptable levels, preserving battery health.
Utilizing Multiple Solar Panels
Using multiple solar panels can boost your charging efficiency. Connecting two 12V solar panels in series generates a combined output of approximately 24 volts. To set this up, connect the positive terminal of the first panel to the negative terminal of the second panel. The remaining positive and negative terminals create the output for charging the 24V battery. This method allows you to harness more sunlight and achieve faster charging times. Be aware that combining panels increases the system’s complexity, so proper circuit design and voltage matching are necessary for optimal performance.
By exploring these alternative solutions, you can efficiently charge your 24V battery while leveraging your existing 12V solar panel setup.
Safety Considerations
Safety plays a crucial role when charging a 24V battery with a 12V solar panel. The following points address essential precautions to ensure a safe and efficient charging process.
Overcharging Risks
Overcharging can harm the battery’s lifespan and performance. Monitor the charging process closely. Install a charge controller to prevent excessive voltage. This device regulates the power flow, ensuring the battery only receives the appropriate amount of voltage. Always check that the charge controller is compatible with both the panel and battery specifications to optimize safety.
Proper Wiring and Connections
Proper wiring and connections are vital for safe charging operations. Use the correct gauge wire to prevent overheating and energy loss. Connect wires securely to avoid disconnection during use. Maintain clean and corrosion-free terminals for better electrical conductivity. Double-check all connections before powering up to prevent short circuits, which can lead to battery damage or fires. Follow the manufacturer’s guidelines for wiring configurations to ensure everything is set up correctly.
Conclusion
Charging a 24V battery with a 12V solar panel is definitely doable with the right approach. By using a charge controller and possibly a DC-DC converter, you can make the most of your solar setup.
Remember to keep an eye on your battery’s voltage and ensure all connections are secure. With a little planning and care, you can efficiently harness solar energy to keep your projects powered. Enjoy the benefits of solar charging and the satisfaction of maximizing your resources!
Frequently Asked Questions
Can a 12V solar panel charge a 24V battery?
Yes, a 12V solar panel can charge a 24V battery, but it requires careful setup. You can connect two 12V batteries in series to create a 24V system or use a charge controller to manage the voltage output.
What type of charge controller is best for this setup?
For charging a 24V battery with a 12V solar panel, an MPPT (Maximum Power Point Tracking) charge controller is ideal. It efficiently converts voltage and maximizes solar energy capture compared to a PWM (Pulse Width Modulation) controller.
How do I connect a 12V solar panel to a 24V battery system?
To connect your 12V solar panel to a 24V battery, you can wire two 12V batteries in series to meet the voltage requirement. Then, connect the solar panel to a suitable charge controller before connecting it to the batteries.
What should I consider for optimal charging?
Ensure proper sunlight exposure for the solar panel, use appropriate wiring to minimize energy loss, and regularly check the battery condition. Also, select the correct charge controller and monitor the charging process to prevent overcharging.
Are there alternative methods to charge a 24V battery with a 12V panel?
Yes, you can use a DC-DC converter to step up the voltage from the 12V solar panel to the necessary level for a 24V battery. Additionally, connecting multiple 12V solar panels in series can achieve a combined output close to 24 volts.
What safety measures should I take when charging?
To ensure safety, monitor the charging process to prevent overcharging, use the correct wire gauge for your connections, and maintain clean terminals. Always follow manufacturer guidelines for wiring configurations to avoid accidents.
