Have you ever found yourself in a situation where your Lenovo ThinkPad won’t turn on, and you suspect the battery might be the culprit? You’re not alone. Many users face this common issue, and knowing where to find the battery can make troubleshooting a lot easier.
Overview of Lenovo ThinkPad Models
Lenovo ThinkPad laptops come in various models, each with unique features and battery placements. Understanding these differences helps when troubleshooting battery-related issues.
ThinkPad X Series
- ThinkPad X1 Carbon: The battery’s located inside the chassis, requiring you to remove the back cover for access.
- ThinkPad X1 Yoga: This model also houses the battery internally. Remove the bottom panel to reach it.
ThinkPad T Series
- ThinkPad T14: The battery sits beneath the bottom cover. Detach the screws securing the panel for direct access.
- ThinkPad T15: Similar to the T14, the battery placement is under the bottom cover. Follow the same steps to reach it.
ThinkPad L Series
- ThinkPad L14: The battery resides inside the laptop. Unscrew and remove the bottom panel to access it effectively.
- ThinkPad L15: Accessing the battery requires removing the back cover, much like the L14.
ThinkPad P Series
- ThinkPad P14: The battery is positioned internally, requiring the removal of the bottom case to gain access.
- ThinkPad P15: Similar to its P14 counterpart, the P15’s battery sits inside. Follow the same removal procedure for access.
General Notes
Finding the battery varies by model but usually requires removing the bottom cover. If you’re unsure about your specific model, check Lenovo’s official support page for detailed guides and diagrams specific to your ThinkPad variant.
Identifying the Battery Location
Locating the battery on your Lenovo ThinkPad varies by model. Understanding these differences helps in troubleshooting effectively.
Recommended Products

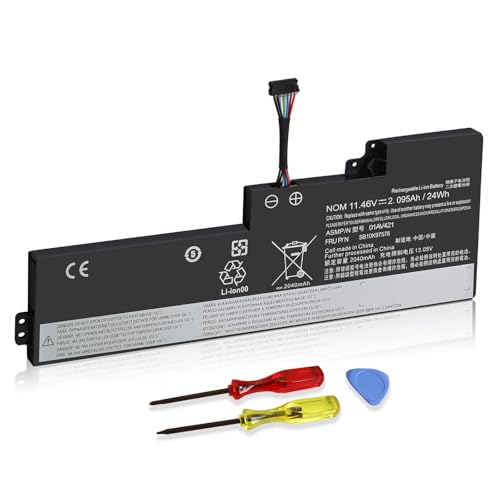

【Specifications】 Model: 01AV421; Battery Type: Lithium polymer; Voltage: 11.46V; Capacity: 24Wh; Cells: 3 cells; Color: Black with One Free Screwdrivers for easy installation.
